Two Additional Sewer Drain Access Points

Galleries

Information

Procedures

Systems

Select this symbol to return to the top of this Menu. è Δ

Page File Information

1. Location:

Location One: An additional Sewer Drain Access point is located in the upper left side of the closet of the ground level bedroom.

Location Two: An additional Sewer Drain Access point is located in the upper left back corner of the Work Bay under the Waterproof Deck.

Δ

2. Notes / Overview / Description:

Location One of the Sewer Access Point is intended for use in a possible future expansion over the existing garage.

Location Two of the Sewer Access Point is intended for use in the planned addition of water and sewer into the Work Bay under the Deck.

These two additional sewer access points were installed during the 2010 rebuild of the home.

Note the installation of Two Inch (2 In) below grade rated foam insulation positioned down to the foundation’s footing and One Inch of above ground foam insulation with taped joints raping the entire exterior of the home before the installation of the vinal siding.

Δ

3. Photos / Graphics:

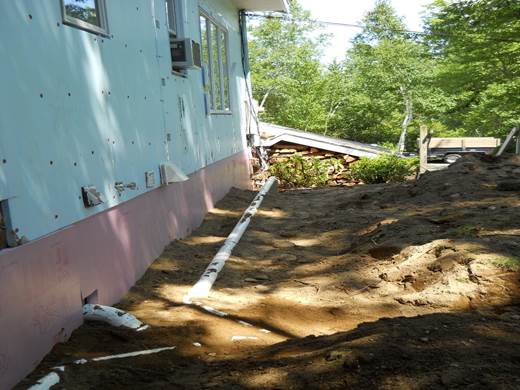

Drain from the back corner of the Work Bay installed for the possible addition of water services to that unit.

Δ

Δ

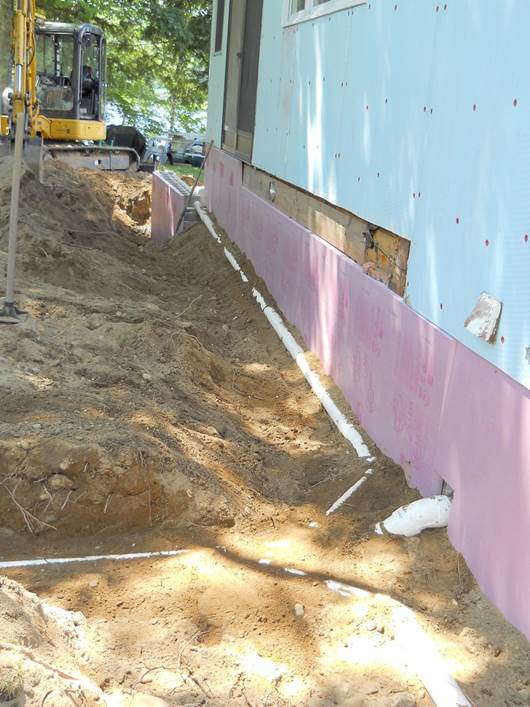

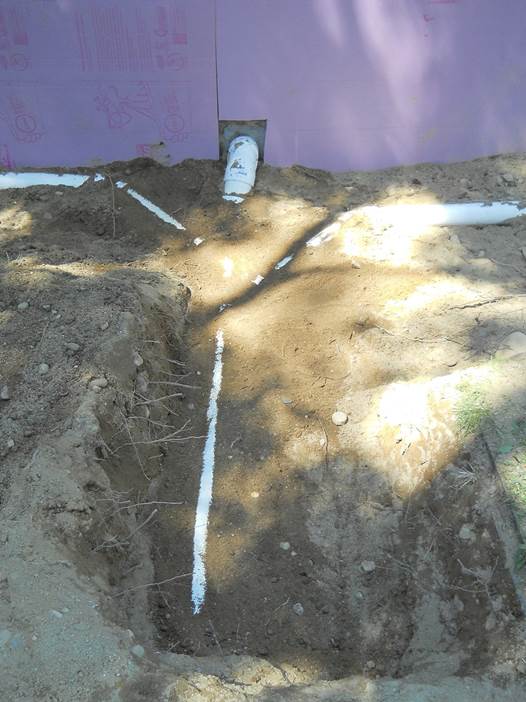

Union of drains, right and left into the septic tank

Δ

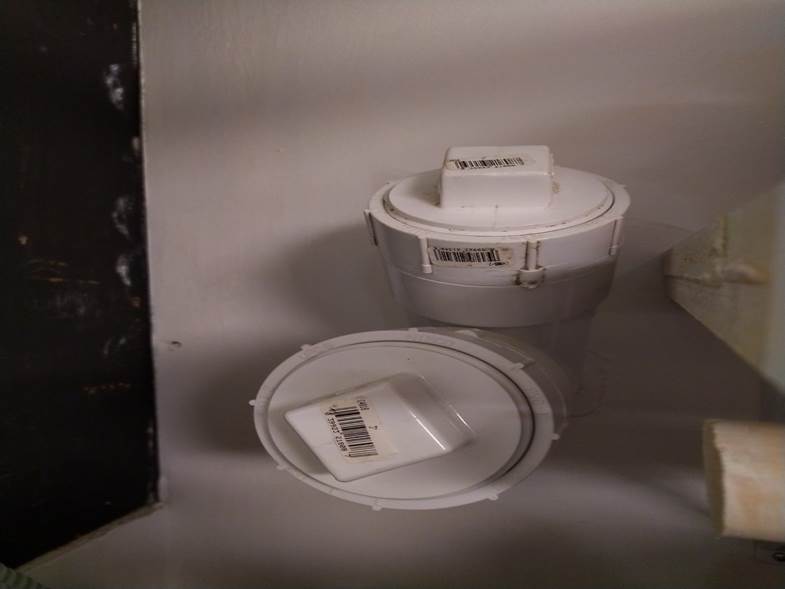

This next view is of the additional Sewer System in the back of the closet in the lower-level East Room.

This access was installed for possible expansion over the garage.

Note that the PVC fittings of the access point are not glued.

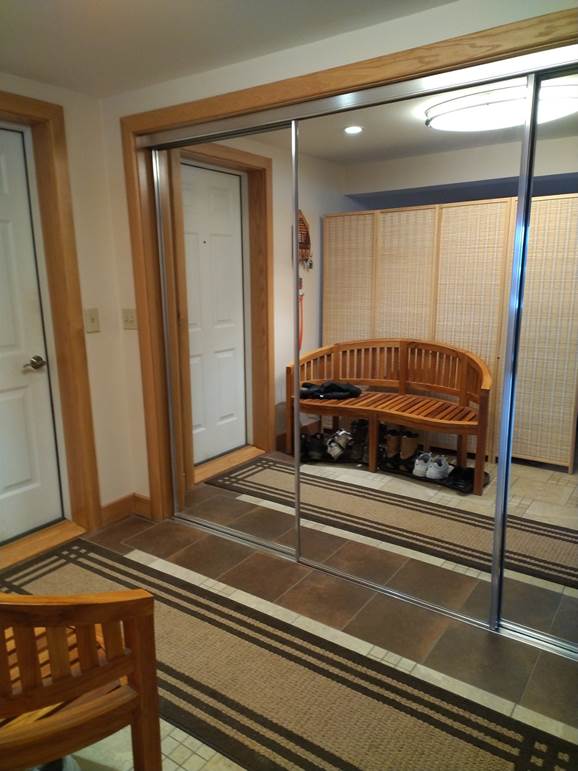

View of the closet and the Sewer access point behind the sliding mirrored door.

Δ

Δ

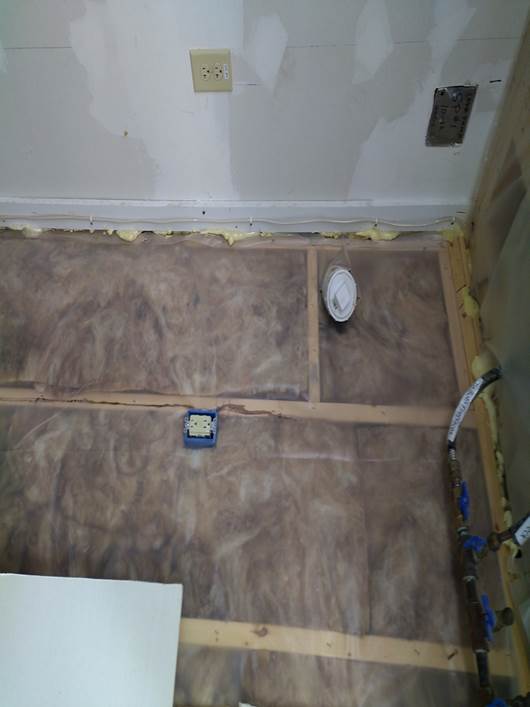

The next view is of the additional Sewer System in the back of the covered bay under the deck.

This photo was taken during construction of the waterproof deck and the work Bay Unit below.

This access was installed for possible addition of water utilities to the Work Bay Unit.

Note that the PVC fittings of the access point are not glued.

Δ

Δ

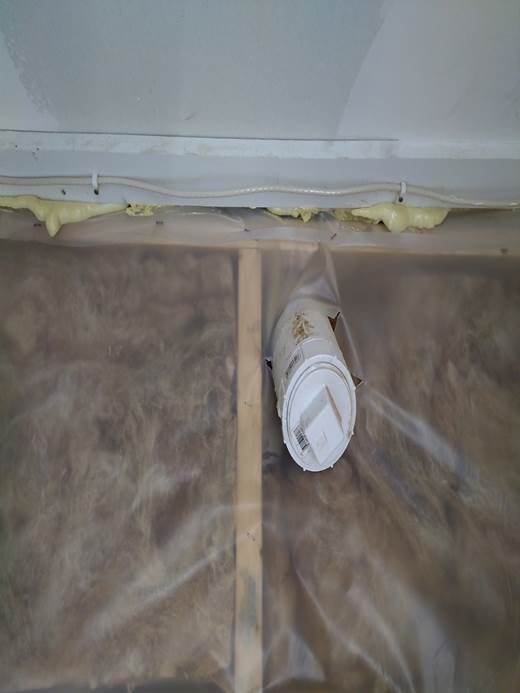

Close-up view.

Δ

These two additional sewer access points are ready for use.

The end caps are not glued and are ready for new plumbing.
