Homeowners
Guide to Waterfront
Living Cobbosseecontee
Lake, Maple Ridge Island 119 Maple Ridge Drive, Monmouth,
Maine 04259-7334 Hosted By: mapleridgelive.com Important Notes Main Menu Page Menu Some of the most important
information for future renovations is contained in these Notes. Please be
aware of these Important Notes below and other notes posted on other pages
as you use this Guide. Important Notes Page Menu Main Menu Use the Back Arrow (η) to return to this list
of Important Notes. Note
1 Lot #95 Numbering Error on Survey Note 2 Open Line on
Breaker 6B on the Kitchen Sub-Panel #3 Image - Dead Kitchen Switch on
Breaker 6B Image of Kitchen Pantry 40 Amp Sub-Panel #3 Breaker List for: Kitchen Pantry 40 Amp Sub-Panel #3 Note
3 Electric Sub-Panel #2 in the Work Storage Bay Image
of Sub-Panel #2 in the Utility Bay Note 4 Breaker 6B on
Sub-Panel 2 in the kitchen Pantry Note 5 Special Use of the In-Ground Pump-Up Toilet Note 1: Survey Lot
Numbering Error IMPORTANT NOTE: Lot
Numbering Error was made on The Survey A Lot Numbering Error was
made on the Survey where Lot #95 was mistakenly marked on the survey as lot
#96. The accurate lot number for the address of 119 Maple Ridge Drive is Lot
#95. The land and waterfront shoreline
at 119 Maple Ridge Drive are identified as Lot #95 on the Monmouth Tax Map #24. Note that the Tax Map
assigns Lot #96 to Blue Bell Island which is just North of Maple Ridge
Island. See the highlighted Lot
Numbering Error on this Survey Detail with Highlighted Lot Number Error
(Lot 96 should be Lot 95) Note 2: Open Line on Breaker 6B on Sub-Panel #3 in Kitchen Pantry Breaker 6B on Sub-Panel #3, in the Kitchen Pantry, is
wired through the single switch set in the tiled backsplash to the left of
the kitchen door (See Photo). The line
ends in the cabinet behind the trash compactor and is safely capped. Note
that the breaker is off. This line and switch were set up to energize

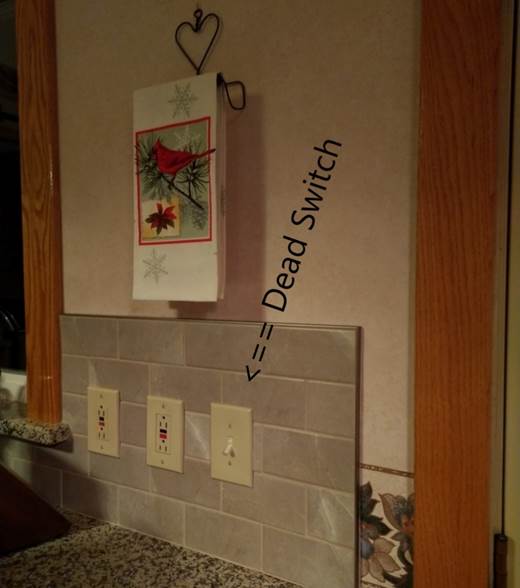

exterior lights on the covered deck. The Dead Kitchen Switch on
Breaker 6B
Note 2 on Breaker 6B above:
refers to this dead (non-functioning) switch which supplies energy through
Breaker 6B to a cable behind the Trash Compactor to be accessed through the
exterior wall to supply supplemental lighting to the covered deck outside of

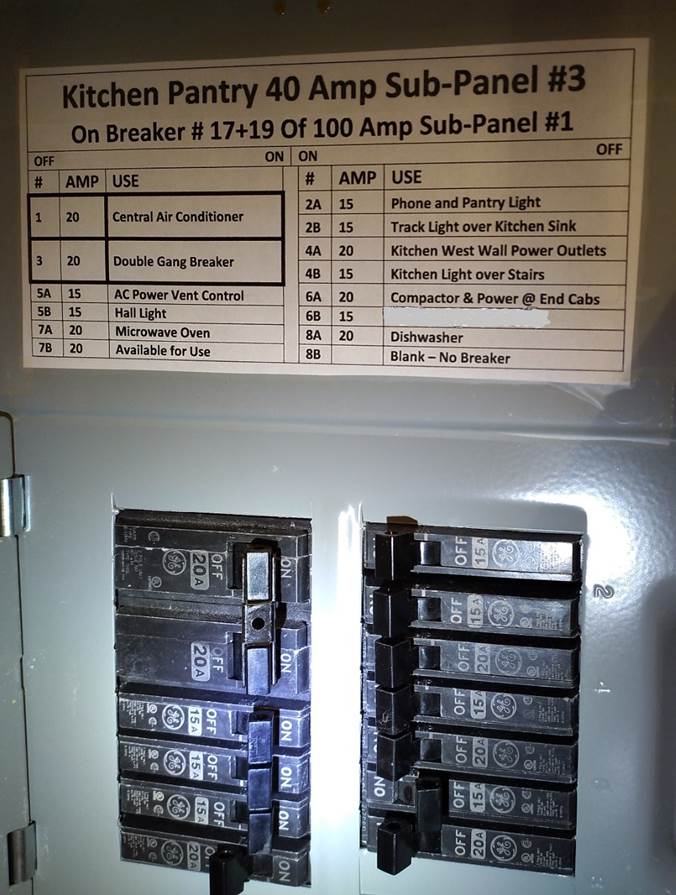

the Kitchen Door. Image of Kitchen
Pantry 40 Amp Sub-Panel #3
Breaker List for: Kitchen Pantry 40 Amp
Sub-Panel #3
Note 3 Sub-Panel
#2 in the Work Bay Circuit
Breaker #1 and #3 on the 100 Amp Sub-Panel #1 in the garage, powers
the 30 Amp Sub-Panel #2 in the Work Bay. This is the Sub-Panel with the
splice of the line from the Lake water Pressure Switch to the Lake Water Pump
Receptacle on

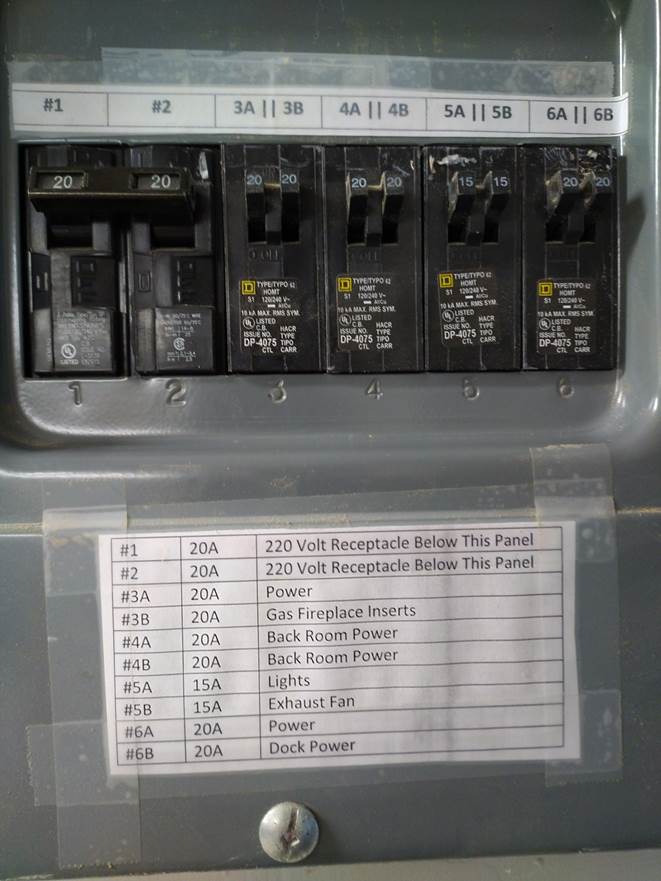

the Utility Post at the Boat Dock. Image of Sub-Panel #2 in
the Utility Bay
Note 4: Breaker 6B on Sub-Panel #3 in the kitchen Pantry This breaker is wired through the single switch set in
the tiled backsplash to the left of the kitchen door (shown below). The line ends in the cabinet behind the
trash compactor and is safely capped. Note that the breaker is off. This line

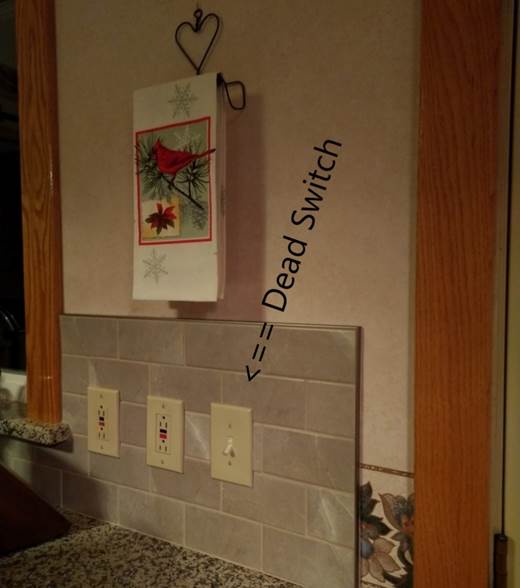

and switch were set up to energize lights on the covered deck. The Dead Kitchen Switch on Breaker 6B
Note 5 The flush-up toilet in the first level bathroom The first level bathroom toilet flushes to a pump station
in the utility space to the left of the laundry stacked washer dryer. Text flagged at the toilet reads; This is a Flush Up
toilet. Do not flush coated paper, cardboard, string, or rubber. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
