Homeowner’s Guide 119 Maple Ridge Drive, Monmouth,
Maine RV Pad Hosted
By: mapleridgelive.com Systems RV Pad The RV Pad with Fresh Water and 30 Amp 125 V
Hookup is located at the North end of the lot. The RV Pad can be used to store the
Boat on its trailer. The pad can be used to store or park a car or trailer
and can accommodate up to a fifty-foot (50 FT) RV There is a Utility Post at the
Northwest corner of the RV Pad with a Fresh Water Hydrant and drinking
fountain supplying pressurized water from the Well on the other side of the
Boat Launch. Two (2) electric receptacles
on the same utility post supply 20 AMP 125 V to a standard plug and 30 Amp

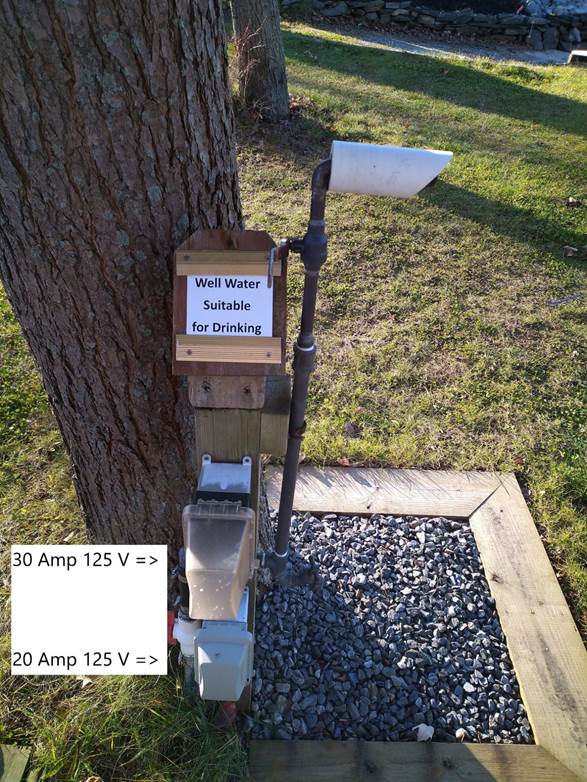

125V to the RV Hookup Plug on separate circuit breakers. RV Pad
Utility Post with Fresh Water source with drinking fountain and Electric
Power.
The 20 Amp Supply is on Sub-Panel
One (1) Braker #11 The 30 Amp
Supply is on Sub-Panel One (1) Braker #13 Procedure Run the Fresh Water Drinking Fountain to “flush the line”
for the first-time use of the season. Clear the freshwater
line in the Fall before the first “Hard Frost”. See the Procedure.

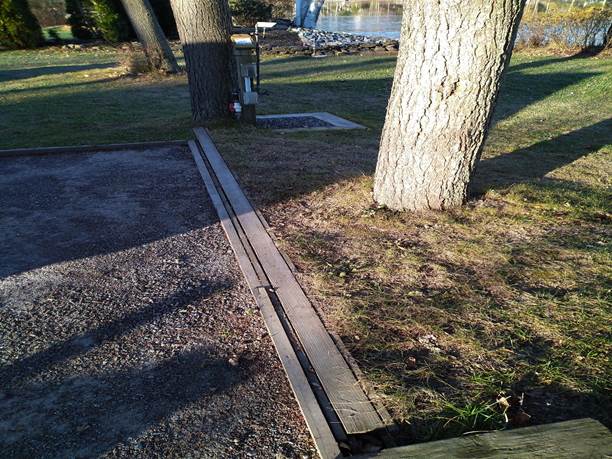

Note the
covered utility channel to contain the power cable and freshwater line. To ready
an RV at the Pad, Remove the cover of the supply lines access channel and
hook up the water and electric to the RV and place the lines into the channel
and replace the cover. Housing the

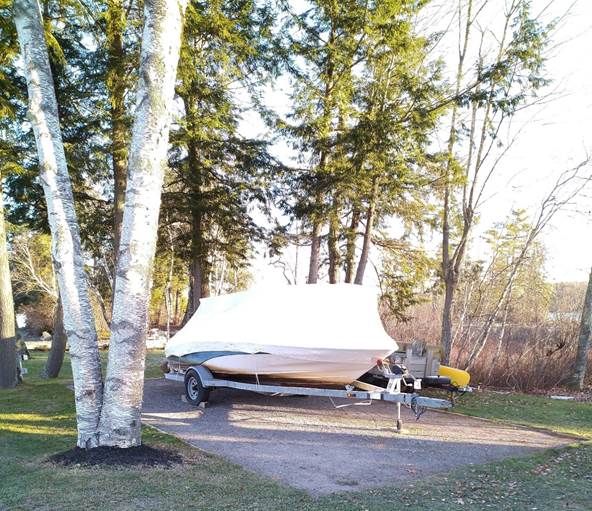

lines removes a potential trip hazard. RV Pad with Winterized Boat
Maintenance
Remove weeds from the surface of
the Pad, scrape the surface to relevel it and add ground Stone Dust as
needed. Page File Information: G:\mapleridgelive\119MRD_WS\Grounds_Exterior_Features\RV
