Fixed Dock Section

Floating Dock Sections Grounded at “Low-Pond”



1.     Location: At the Waterfront

Δ

2.     Notes / Overview / Description:

Δ

The Docks and Swim Float provide significant access to the nine miles (9 Mi) of waterways and shores that lake Cobbosseconte has to offer.  Boating, swimming, and wading are great warm weather activities. Shows hoeing, cross-country skiing and Ice Fishing are provided by the lake topped by fifteen or more inches of ice.

Access to the docks begins with a short walkway that traverses the berm through a cut in the Rose Hedge that makeup the Waterfront environmental barrier to protect the lake from storm water runoff. The end of that short walkway meets a fixed welded steel cantilevered dock structure that stays in place year-round.  That fixed section of the dock system provides a strong attachment point for the floating sections that connect there.

Δ



 The fixed section also makes the transition down to the fluctuating water level and wave action that can be significant.  The cantilevered structure stands off above the rocky frontend of the waterfront while reaching out and down to the water to remain safely above the “Strong Ice” that forms each winter.

Δ

Three (3) floating sections of docks connect to the fixed section with just two (2) “push-pull” locking pins.  The floating sections are easily disconnected from or reconnected to the fixed section while the floating sections are floated over to or from their winter parking area where they rest on solid ground when the water level is taken down to “low pond” by the Water District.  In the spring the water rises to “full pond” with the snowmelt runoff and the floating docks are drifted back to the fixed section and reconnected.

The Swim Float is attached to a mooring with a chain that stays on the bottom marked with a submerged plastic bottle.  In the spring the chain is fetched up with hook at the end of a ten-foot (10 FT.) pole handled from a canoe.  Its an operation that can be trying based upon wind and water conditions but is always interesting and can even be fun to accomplish.

Δ

3.     Photos / Graphics:

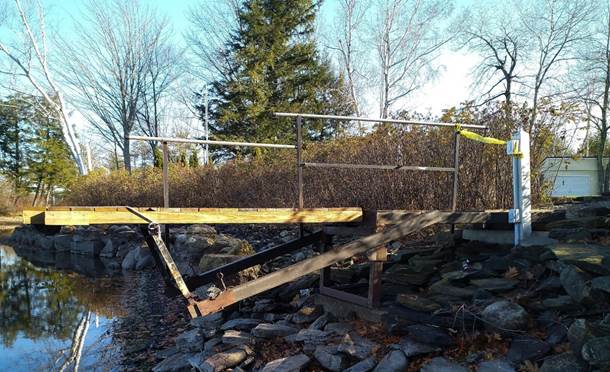

Fixed Dock Section at winter rest with water at “low Pond”

A wooden bridge over a river

Description automatically generated

This fixed dock station is a welded steel cantilevered section that reaches out over the anchor stones that hold and protect the shoreline from wave action erosion.  The cantilevered section reaches down to the water to meet the floating docks that are joined to it at “Full Pond” and summer water levels. The sliding connections on the cantilevered section make it adjustable to changing water levels.

Δ

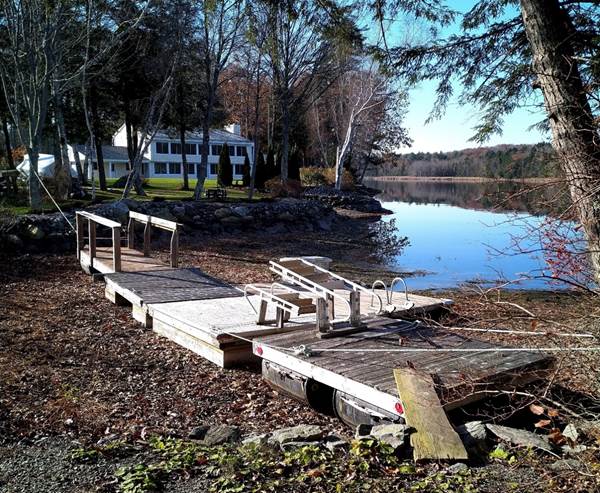

Floating Dock Sections in “Winter Storage” Grounded at “Low-Pond”

A dock on the shore of a lake

Description automatically generated

In the Spring the Docks will be floating with the water level at “Full Pond” and can be easily floated over to and attached to the fixed section of the dock system.
