Owners Guide
119 Maple Ridge Drive, Monmouth,
Maine 04259-7334
Small Attached Shed
|
|
Select this
symbol to return to the top of this Menu. è Δ
1. Location:
|
The Small Shed is a “Post-and-Beem,
Lean-To” addition attached to the Southeast corner of the garage. |
2. Notes / Overview / Description:
|
The small Shed was
initially constructed as an open-air “Woodshed” (see photos) before the major
rebuilding in 2010. Three (3) tapered
frost resistant concrete posts were set 4 Ft deep in the ground. Three (3) Pressure Treated (PT) 6 X 6 posts
stood up the far elevation on the low side with a 6 X 6 PT horizontal beam to
support the 2 X 6 rafters attached “sister-to-sister” to the existing garage rafters
extending the roofline. An Insulated concrete floor with a floor drain was poured
and finished to a non-skid surface. And a side entryway door was opened to
the shed from the garage. After the 2010 expansive rebuilding
of the home the side of the shed was closed with added matching siding, front
double doors, and white trim to go with the decor of the newly remodeled
home. Lighting was added from the 15 Amp Breaker #30 on Main Electric Panel
#2. An Electric outlet was added powered by the 20 Amp Breaker #15 on Main
Electric Panel #1. |
3. Photos / Graphics:
|

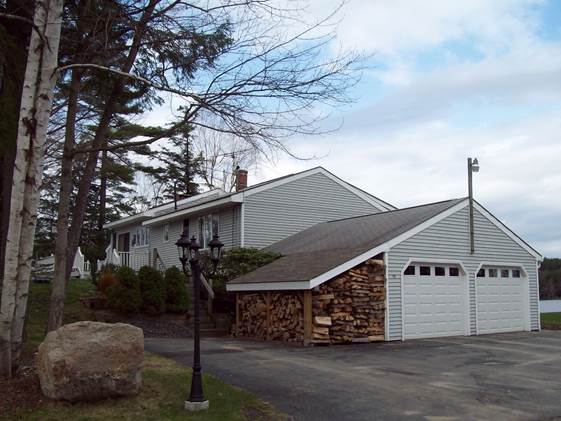

The Original Woodshed added before
the expansive 2010 remodeling and while wood inserts were still in use in the
two fireplaces. |
|
|
|
Woodshed after the 2010 Rebuild |
|
|
|
Note that the door
into the shed and the canopy over the deck off the Kitchen had not been added
yet. |
|

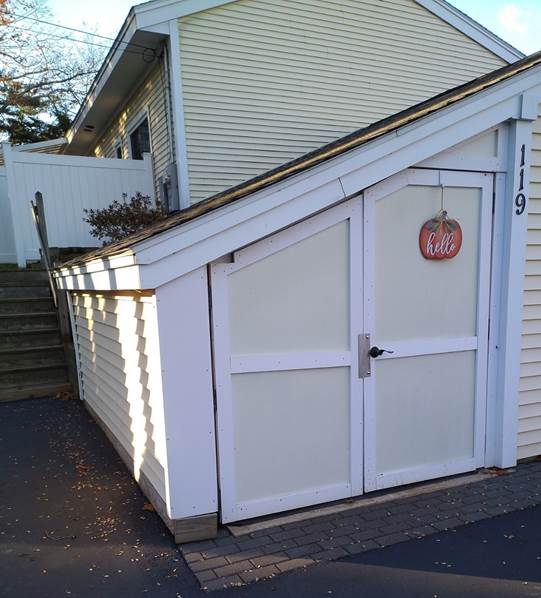

The finished enclosed Small Shed as wood fuel was replaced by two gas
fireplace incerts. |
|
|
|

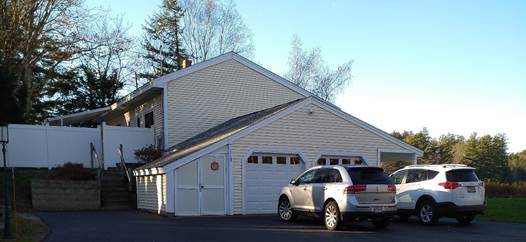

Small Shed and forur
(4) parking spaces |
|
|
4. Operation:
|
|
5. Maintenance:
|
|
6. Reference / Links:
7. Other:
